Elstein IRS K Heater

Elstein IRS K Heater

Elstein IRS/K rod heaters are ceramic infrared heaters, which are available in different lengths of up to 300 mm and surface ratings of up to 75 kW/ m²

Unlike the IRS Series heaters, which have the leads running through the mounting sockets on each side, the leads of IRS/K Series lie only on one side.

Thus IRS/K heaters make the heating of the interior of hollow bodies like tubes or bottles possible.

Linear heating tasks that need one-sided leads can be solved, too.

Consideration :
The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.

The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.

Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.


Yes! I am interested

Submit Your Requirement


Specifications

Type // Weight g // Wattage W IRS/K 300 mm 100 300 to 750
Length // Weight variable Wattage variable
  IRS/K 125 mm 40 125 to 300
Surface rating kW/m² 30,0 to 75,0
Typical operating temperature °C 400 to 700
Maximum permissible temperature °C 750 to 750

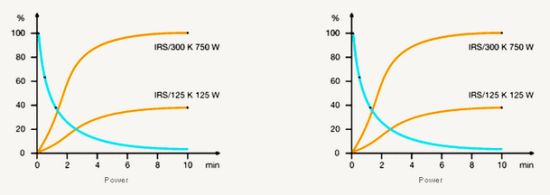

Graph

Graph
